Equipment and materials:304 stainless steel (part in contact with food)
Pneumatic components:FESTO, Germany (standard parts), adek, Taiwan (non-standard parts)
Driving mode:Mechanical transmission (cam gear lever full mechanical mode)
Measurement method:Shrinkage cup metering, bowl feeding, combined scale, etc.(optional)
Applicable materials:Candied pastries, melon seeds, peanuts, fried nuts, expanded productsproducts in small bags and large bags, etc.(no vacuum pumping)
Workflow:1 Bag loading 2 coding (3 bag opening and bag supporting 4 blanking i/ down shock (optional)5 blanking ii 6 reservation (7 sealing i 8 sealing ii、Shaping
Sealing method:According to the product, two seals can be used to ensure that the seal is beautiful and firm
Packaging speed:20 packs 60 packs / min (depending on the product itself and the charge)

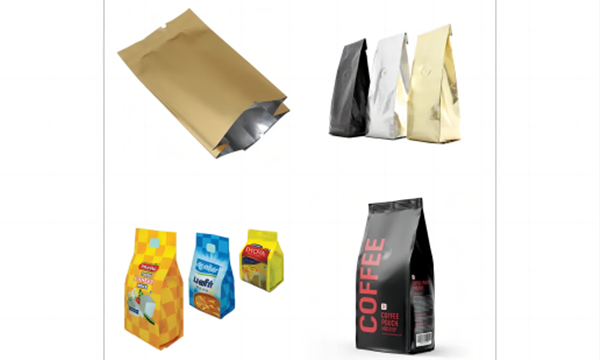

Packing bag materials:Self standing bag, zipper bag, four side sealed bag, three side sealed bag, paper bag (surface coated with paper), etc
Bag specification:W 80mm*230mm L100mm*350mm/W 130mm*260mm L100mm*400mm
Total power:Main engine power =s 4.5KW/5.0KW
Gas consumption:0.6m'/min
Driving powver supply:Three phase 380V 50HZ (non-national standard three-phase 380V 60HZ)
Machine shape:1680mm*1356mm *1310mm (L" WH)(excluding hoist)/1800mm*1440mm *1310mm (L" WH)(excluding hoist)
Machine weight:1.5T (Host)/2.0T (Host)
Use environment:Room temperature 10 C 40 C, 30 - 90% RH, no dew, corrosive gas, dust and other harsh environments
