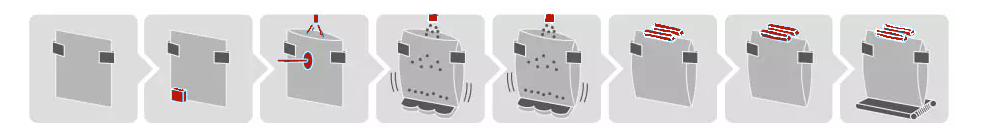

Packaging Process
1.Giving Bag —— Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take the bag up and then transmit it to the mechanical gripper on the rotary table.
2.Date Printing —— According to the actual production and packaging needs, different types of coding machines are configured to print the date and batch number on the packaging bag.
3.Opening Bag —— While the suction cup opens the opening of the packaging bag, air is sprayed from the upper nozzle to blow open the bottom of the packaging bag, the packaging bag support plate is inserted into the opening of the packaging bag, and the packaging bag enters the next station.
After inserting the bag support plate into the bag opening, the detection of whether there is a packaging bag and whether the opening of the bag is opened is completed. If there is no packaging bag or there is no opening to open the packaging bag, the next station will not feed.
4.Filling & Consolidate 1 —— According to different packaging materials, different feeders are configured at this station to complete the automatic or semi-automatic delivery of materials.
5.Reserve
6.Reserve
7.Reserve
8.Bag straightening —— Straighten the bag and check whether there are materials in the bag at the same time. If there is no material in the packaging bag, it will not be transferred into the vacuum chamber.
9.Transfer —— The transfer manipulator between the two turntables transfers the packaging bags from the bag feeding turntable to the vacuum turntable. The packaging bag with the mouth of the packaging bag not opened or without materials added will not be passed into the vacuum chamber, and the packaging bag can be recycled and used again after it is dropped at this station.
10.Reserve
Safety
· No bag – no filling – no sealing, machine alarm.
· Bag opening miss – no filling – no sealing, machine alarm.
· Machine stop or alarm when the air pressure is abnormal.
· Error position display at the control panel.
· Control panel locate on the right side top of the machine.
· Outside the machine and all the parts which touch production all made by stainless steel.
· There are several safety doors made by aluminum Profile Frame.
· The doors are equipped with safety proximity sensors.
· Machine surface can be washed by water and brushed by cloth.
