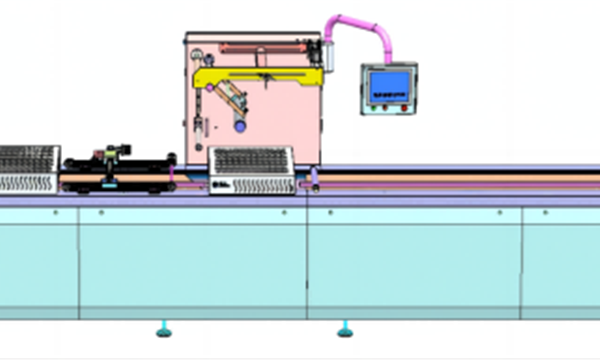

DZDL-620

Japanese FUJI PLC& HMI control with touch screen operation
Germany Busch Vacuum Pump
Highly durable stainlesssteel 304 frame
Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume

Vacuum degree:380V/50Hz15Kw Three phase four wire 380V/50Hz15Kw

Vacuum degree:≤200Pa

Width of upper membrane:488mm0.12-0.21mm

Air source pressure:0.6-0.8Mpa

Air source flow:>1m3/min

Effective size:400mm*450mm

Packaging speed: 4-8 times per minute

Weight of complete machine:~1.8T

Overall dimensions:6700mm*1080mm*1850mm

Pumping rate:200m3/h

Average power:7.5-8.5Kw/h

Packing width:8mm

Peak power:=16.5Kw/h
